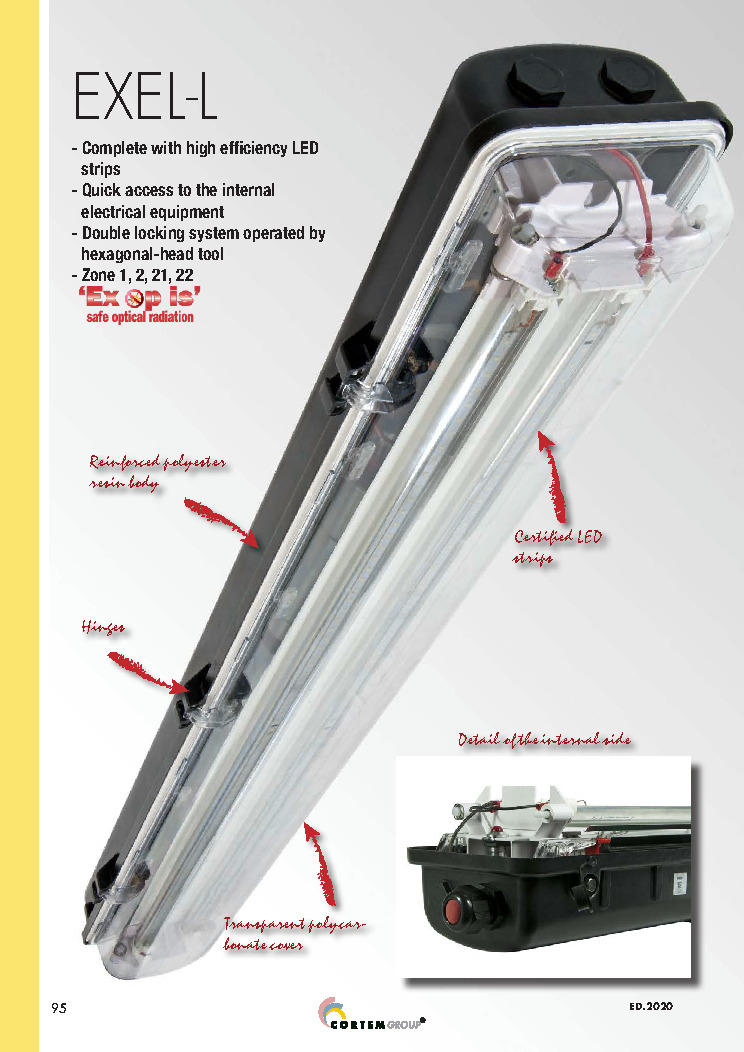

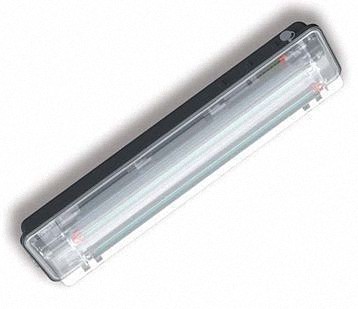

Lighting fixtures for LED strips
EXEL-L series increased safety lighting fixtures for Cortem LEDs resin-bonded strips are suitable to be installed in hazardous areas where a high degree of protection and resistance against corrosion is required. EXEL-L series is GRP made and features the ‘Ex de mb’ method of protection. It’s equipped with LED tubes sealed in a transparent resin.
- The through wiring double ended makes installation on field easier and faster.
- The transparent cover is clipped into place on both sides of the fixture body with 8 clips on the EXEL-215L model and 14 clips on the EXEL-230L unit.
Construction
- Body in antistatic GRP (glass reinforced polyester);
- VØ (UL 94) guaranteed self-extinguishing and UV resistant transparent polycarbonate cup;
- Internal frame in extruded aluminium;
- White internal reflector in PVC coated aluminium;
- Electronic ballast and safety switch;
- Screws and accessories in stainless steel AISI 316L.
