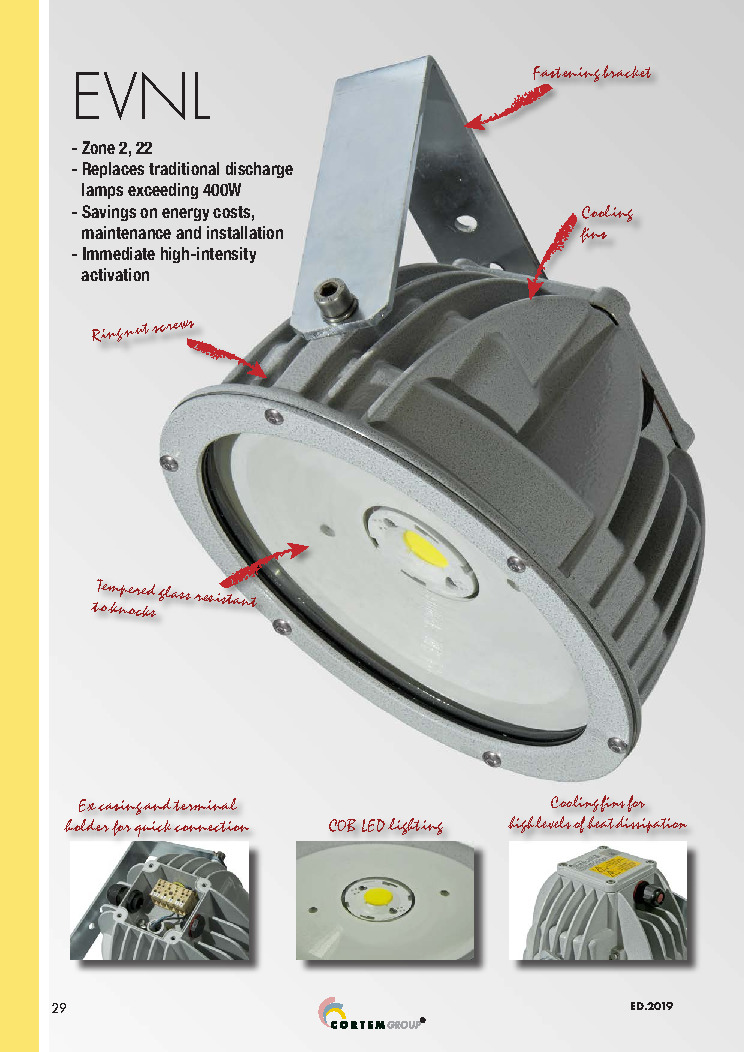

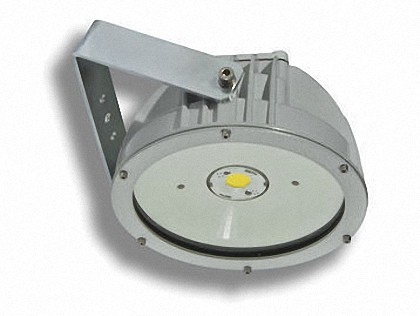

EVNL series, High Bay LED lighting fixtures for zone 2, 22
EVNL series has been designed for zone 2 and zone 22 keeping cost reductions at the foreground, improving the quality of the product and increasing the lighting solution specifications.
The advantage of the EVNL lighting fixtures is the implementation of the “Ex nR” protection which classifies the equipment as a restricted breathing device. The careful design together with the meticulous choice of materials to seal the lighting fixture limits the entry of flammable gases, vapours or mists during normal operation of the lighting fixture.
- LED lighting system “COB” (Chip on Board);
- Four lighting fixtures sizes: EVNL-60, EVNL-70, EVNL-80, EVNL-100;
- High efficiency electronic ballast multi voltage;
Construction
- Low copper content aluminium alloy body and ring;
- Tempered glass resistant to shocks;
- Stainless steel bolts and screws;
- EPDM gaskets;
- Stainless steel swiveling supporting bracket;
- Cable gland UNI1LXE7 and plug PLG1ILXE7 brass;
- Polyester coating RAL 7035.
