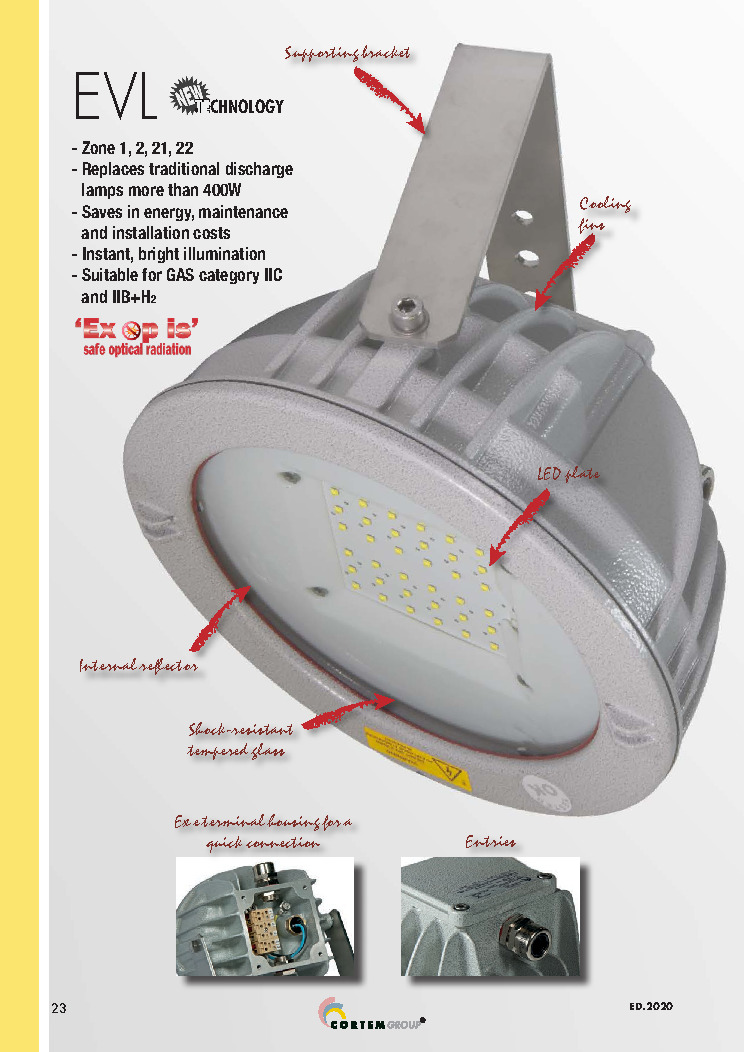

Low bay lighting fixtures with LED
EVL series features a multi LED board plate which allows a better control of heat dissipation, excellent mechanical strength and a larger light emission area that offers greater illumination and reduced glare. EVL series represents the LED alternative for all those areas in which it was usual to use lighting fixtures with discharge lamps of low and medium power more than 400W.
- Four sizes of lighting systems: EVL-060, EVL-070, EVL-080, EVL-100;
- New supply voltages available (from 120 Vac to 277 Vac);
- Different powers available for each model with different lumens performance (from 1.900 lm to 21700 lm);
- Portable model available.
Construction
- Low copper content aluminium alloy body and ring;
- Shock resistant tempered glass;
- Stainless steel bolts and screws;
- Silicone gaskets;
- Stainless steel swiveling supporting bracket;
- Cable gland NAV20SIB and plug PLG1IB;
- Polyester coating RAL 7035.
