Junction box
EJBX series junction boxes are installed in industrial plants where there is a risk of explosion and fire and where combustible dust is present, classified as Zone 1, 2, 21, 22.

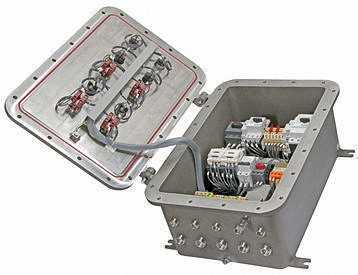

These enclosures are made from welded 316L sheet stainless steel and come complete with stainless steel screws and a silicone gasket running around the perimeter between the body and lid to provide the IP66 protection degree. The EJBX units are mostly used as junction boxes with relevant connection terminals, as enclosures for fuses, transformers and reactors, as monitoring and signalling boards, light and power boards or motor starter boxes with various configurations, which are custom made to the requirements of our customers worldwide.
- Group IIB+H2.
- 17 different sizes.
- IP 66/67.
- Quartz sand blasting finished.
Construction
- Body and cover in AISI 316L stainless steel;
- Internal/external earth screws;
- Stainless steel cover bolts;
- Stainless steel hinges with mounting straps included;
- Silicon gasket.

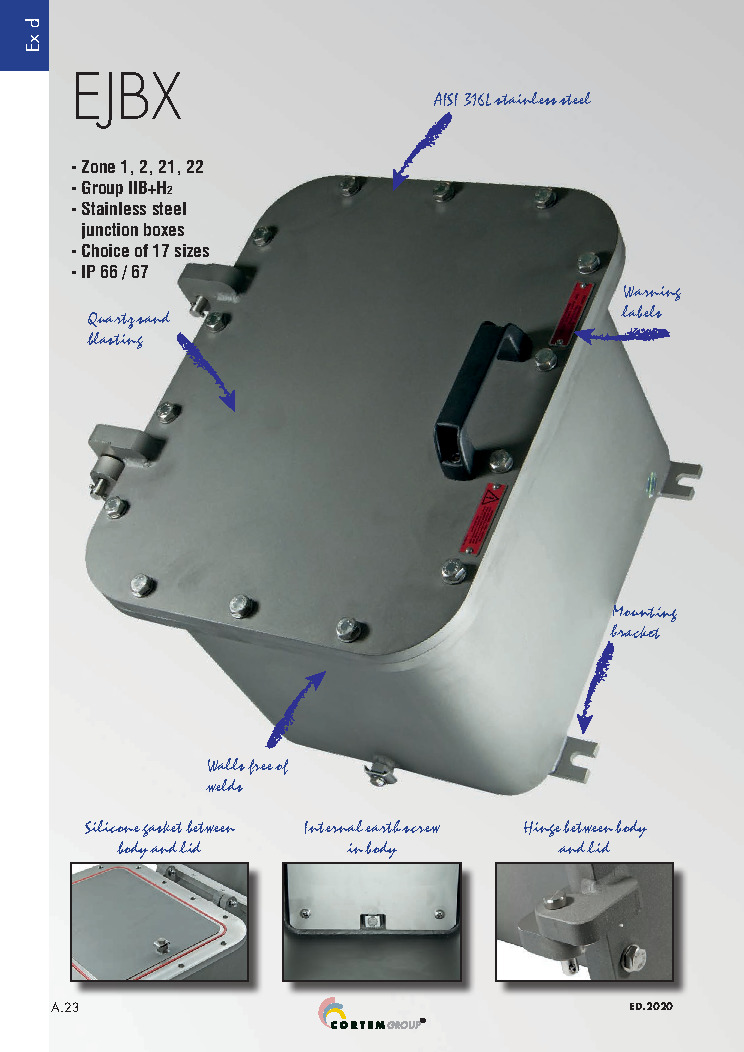

Catalogs
;
