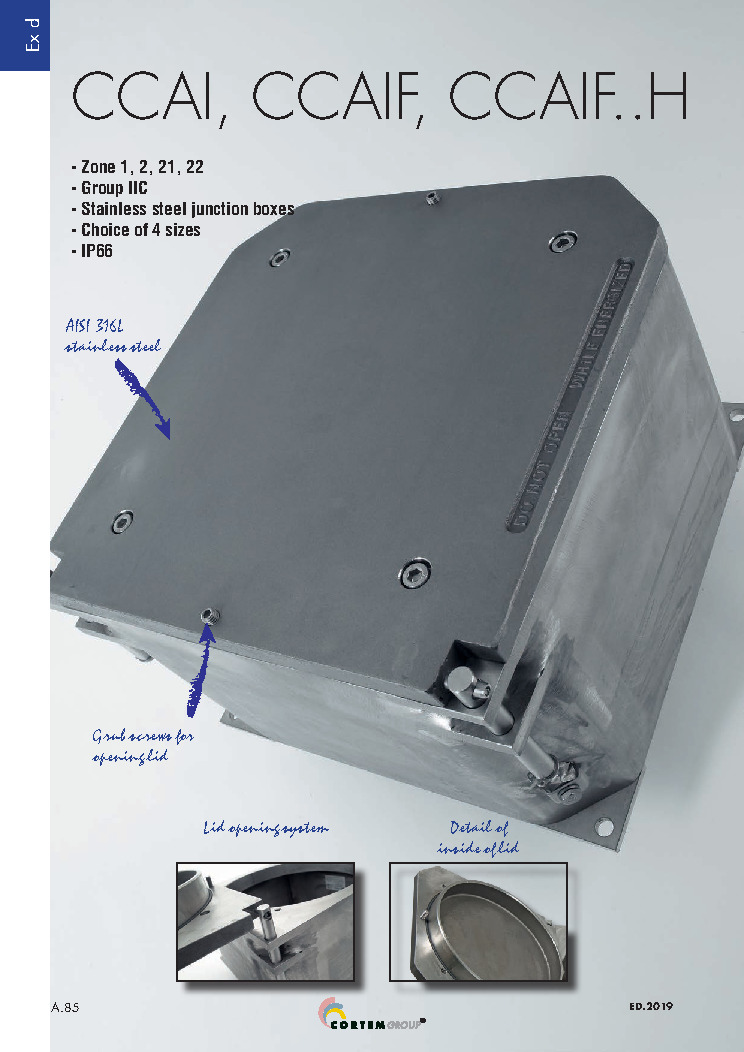

Junction box

CCAI series junction boxes are installed in industrial plants where there is a risk of explosion and fire, where combustible dust and group IIC gases are present, classified as Zone 1, 2, 21, 22.

These enclosures are made from welded 316L sheet stainless steel and come complete with stainless steel screws and a silicone gasket running around the perimeter between the body and lid to provide the IP66 protection degree.

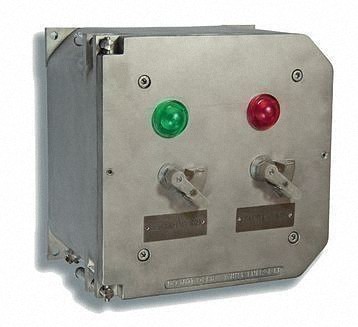

The CCAI units are mostly used as junction boxes with relevant connection terminals, as enclosures for fuses, transformers and reactors, as monitoring and signalling boards, light and power boards or motor starter boxes with various configurations, which are custom made to the requirements of our customers worldwide. CCAIF and CCAIF...H series have a screw cover with or without round window.

• Group IIC.
• Choice of 4 sizes.
• Lid fitted with hinges for body coupling system incorporating cylindrical joint.
• IP66.

Construction

• Body and cover in AISI 316L stainless steel;
• Internal/external stainless steel earth screws;
• Fixing lugs. Neoprene gasket.
