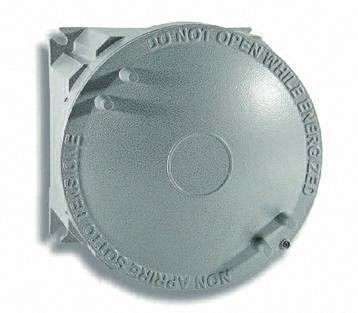

Junction box
The CCA...E series junction boxes complete the GUB series range and are recommended for fitting with terminals given that they provide more room, making it easier for operators to gain access.
On the other hand, the smaller wall area means drilling options are limited. The quality of this product is recognized and valued the world over for its specific aluminium alloy and the mechanical properties of its finishes.
The CCA...E series is employed where group IIC gases are present and is mostly used as a box to carry terminals, fuse carriers, transformers, reactors and barriers, though it is also used to produce control and signalling boards, light and power boards and motor starter boxes with different configurations, which are specially custom made to the requirements of our customers worldwide.
The CCA...EH series features a threaded lid with a tempered glass viewing window.
- Group IIC.
- Choice of 5 sizes.
- Screw-on lid with safety fastening grub screw.
- IP66.
Construction
- Body and cover in low copper content aluminium alloy;
- Internal/external stainless steel earth screws Fixing lugs;
- RAL 7035 polyester coating.;
- Neoprene gasket.
